High Precision 12kv Indoor Medium Voltage Instrument Transformers Epoxy Resin With 0.2S

Name: High Precision 12kv Indoor Medium Voltage Instrument Transformers Epoxy Resin With 02S
Brand: Chuangyin
Price: 1 USD

Brand Name : Chuangyin

Model Number : LFS-12

Certification : Kema,CE,SGS,TUV

Place of Origin : Shenzhen

MOQ : 1set

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 36,000,00pcs per year

Packaging Details : Plywood

Price : Negotiable

Rated insulation level : 12/28/75 kv

Certificate : Kema/Tuv/SGS

Type : Dry Type

Standard : IEC60044-1(IEC61869-1&2)

Name : MV Transformer

Phase Number : Single Phrase

Contact Now

High Precision 12kv Indoor Single-Phrase Epoxy Resin with 0.2S

1.Product Introduction:

LFS-12 current transformer, epoxy resin casting insulation and fully enclosed support construction, encloses primary & secondary windings and annular core in the epoxy resin casting body. The product has two secondary windings (one measuring winding and one protective winding). It is widely used for measuring current, electric energy and protective relaying in the power system with the rated frequency 50Hz or 60Hz and highest voltage for equipment 12kV.

2. Technical Data:

Usage terms
1. Ambient temperature: -5-40℃
2. Height above sea level : within 1000m
3. Installation site: indoor

Main technical parameter
1. Rated insulation voltage: 12/28/75kV etc.
2. Rated frequency: 50/60hz
3. Installation Site: Indoor
4. Standards: IEC60044-1(IEC61869-1&2)

3. Specification:

Rated current ratio(A)	Secondary accuracy classes combination	Rated output (VA)			FS	ALF	Rated short-time thermal current (kA/S)	Rated dynamic current ( kA)
		Measuring		Protective
		0.2(S)	0.5	10P
5~200/5	0.2(S)/0.2(S) 0.2(S)/0.5 0.2(S)/10P 0.5/10P	10 15	15	15	5 (10)	10	80I1n	200I1n
300/5							20	50
400/5							30	75
500/5							30	75
600/5							40	80
800/5							40	80
1000/5							63	105

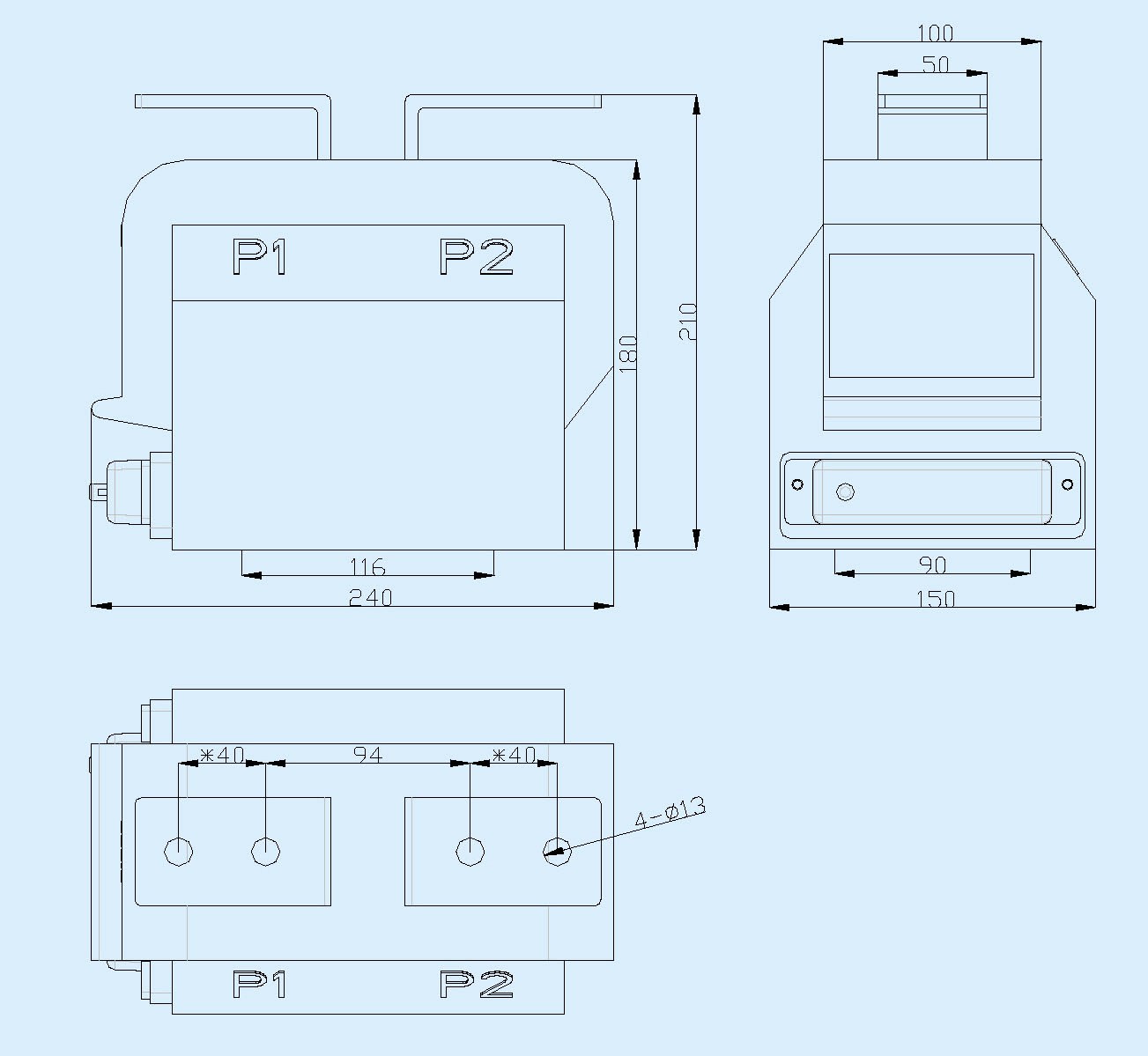

4. Outline Drawing:

High Precision 12kv Indoor Medium Voltage Instrument Transformers Epoxy Resin With 0.2S

5.Photos:
